Part 2: Making a nice-looking, well-labelled plot#

First, we import the matplotlib core plotting library matplotlib.pyplot as follows (be sure to run this code block):

%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np

Improving our previous plot#

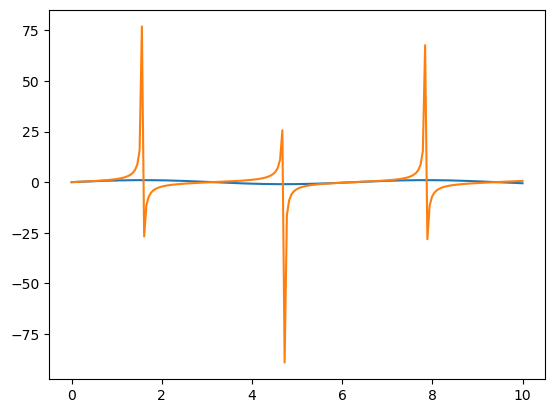

In the previous notebook, we produced the following plot. There are several issues: the y-axis range is too large, the axes are unlabelled, and there is no legend (key) to tell us which line represents which function. Let’s fix this.

x = np.linspace(0,10,200)
y = np.sin(x)
z = np.tan(x)

# Now with two input arrays the first is the x axis and is plotted against the second on the y-axis
plt.plot(x,y)
plt.plot(x,z)
plt.show()
../_images/Part02_Line_Plots_3_0.png

Adding axis labels, titles and legends#

Let’s add some axis labels, a title, and a legend to our plot.

You can add axis label using xlabel and ylabel:

plt.xlabel("x-axis label")
plt.ylabel("y-axis label")

A title can be added using the command plt.title, and a legend with plt.legend

When a plot has multiple data sets or functions shown, a legend can be used to identify which lines or points belong to which dataset. To add a legend to our plot, we need to modify the original plot commands slightly, to include a label for the plot legend. A legend tells us the variable each marker or line represents.

plt.plot(x,y, label='sin(x)')
plt.plot(x,z, label='tan(x)')
plt.legend() #Adds the legend to the plot

Exercise 1.1#

Reproduce the plot shown above, adding the required lines, axis labels, a title and a plot legend using the new commands outlined above.

#clear the original plot
plt.clf()

#Add a title


#Add the axis labels.

#plot the functions, with legend labels

#add a legend


plt.show()

<Figure size 640x480 with 0 Axes>

Unfortunately the range of tan(x) is much larger than sin(x) and we can’t see the latter! A grid may also help us explore the behaviour of the two functions in more detail.

We can remove some of the white space around the plot using plt.ylim:

#modify the axis limits
plt.ylim(-1.1,1.1)
plt.xlim(0.,10.)

# add a grid to improve the readability of the plot

plt.grid(alpha=0.5)

Exercise 1.2#

Remake your plot from exercise 1.1, setting the \(x\) and \(y\) axis limits to more sensible values such that the behaviour of both \(\tan{x}\) and \(\sin{x}\) can be seen. It may be useful to use the max() and min() commands to explore the behaviour of \(\sin{x}\).

Line formatting#

You might want lines that are different colours to the default matplotlib colour scheme, or use a different line style. These can be adjusted by adding formatting strings to the plot command:

plot(x,y,color='cname', linestyle='lname')

Replace cname or lname with your choice of colour name or line style as outlined below.

Python understands all html colour names as input. A good reference for these can be found at this link: https://html-color-codes.info/color-names/

Be sure to use the colour name e.g. MediumPurple rather than the code.

It also understands these basic colour name commands:

  • r = red

  • g = green

  • b = blue

  • c = cyan

  • m = magenta

  • y = yellow

  • k = black

  • w = white

The style of the plotted lines can also be adjusted, using the following (other line options are available):

  • - = solid line

  • -- = dashed line

  • : = dotted line

  • -. = dot-dash line

Exercise 1.3#

Modify the earlier plot showing the sine and tan functions as follows:

  • The sine function should be plotted as a green dotted line

  • The tan function should be plotted as a purple dashed line

You may may choose any colour names you like, provided they produce the requested plots. Be sure to restrict the limits of the plots to show a useful data range.

Exercise 1.4#

Using the above examples as a starting point, create a single plot containing the following:

  1. Plot the functions \(f(x) = x^2\), \(f(x) = x^3\) and \(f(x) = x^4\) for values of \(x\) between 0 and 1 on the same set of axes. The plot must have a legend, and you should ensure that each function is described in the legend. Use enough values of \(x\) such the plot looks smooth. Hint: using commands from the \(\LaTeX\) (LaTeX) typsetting language can make your labels look really good. Try using f'$f(x) = x^{2}$' as a label.

  2. You can create a plot with log scale axes by replacing plt.plot with plt.loglog. Or if you just want a log-scaled y (or x) axis, you can use plt.semilogy or plt.semilogx. Create three copies of the same plot as previously but use these 3 commands instead of plt.plot. (Remember that you cannot take the log of 0, so consider this when choosing x and y values!)
